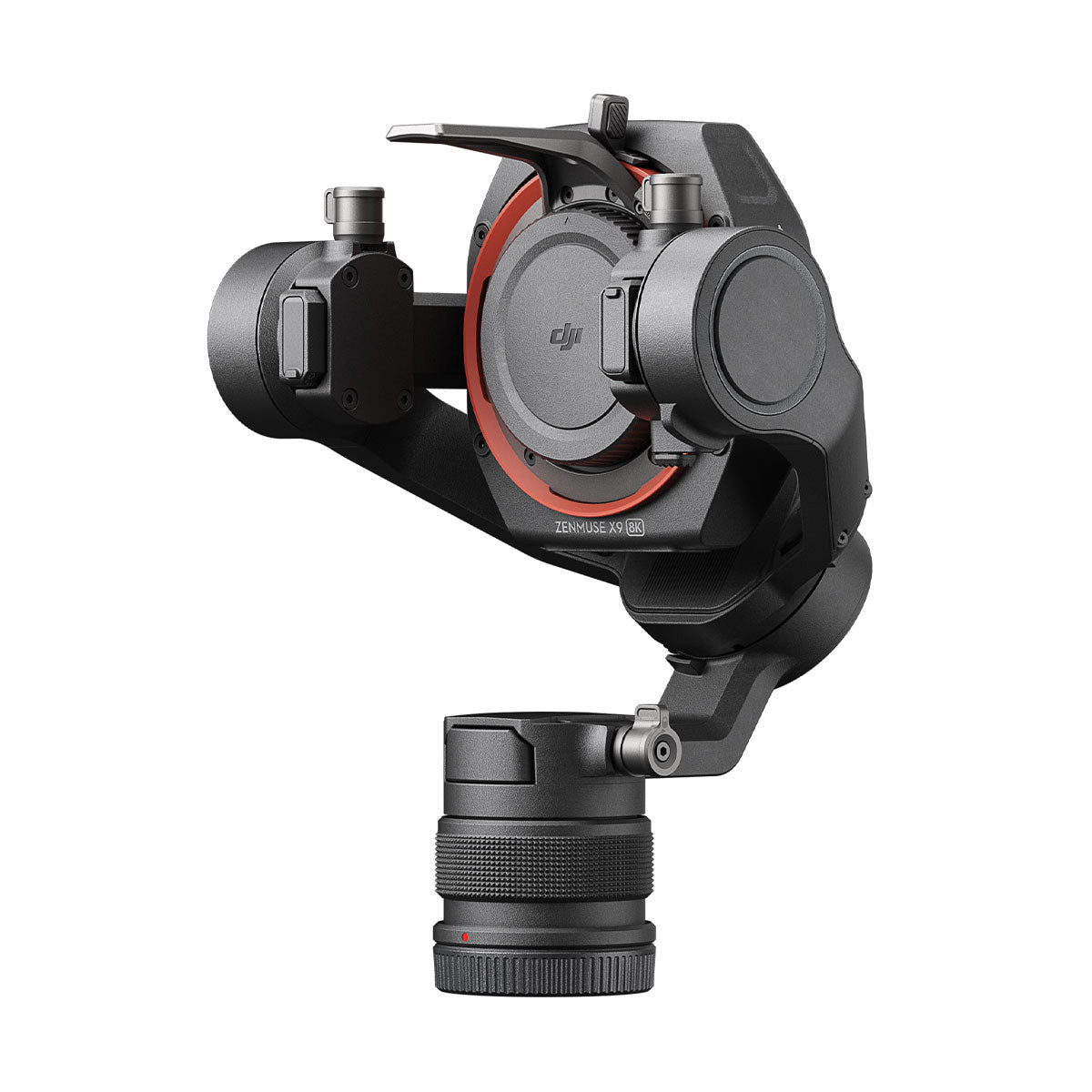

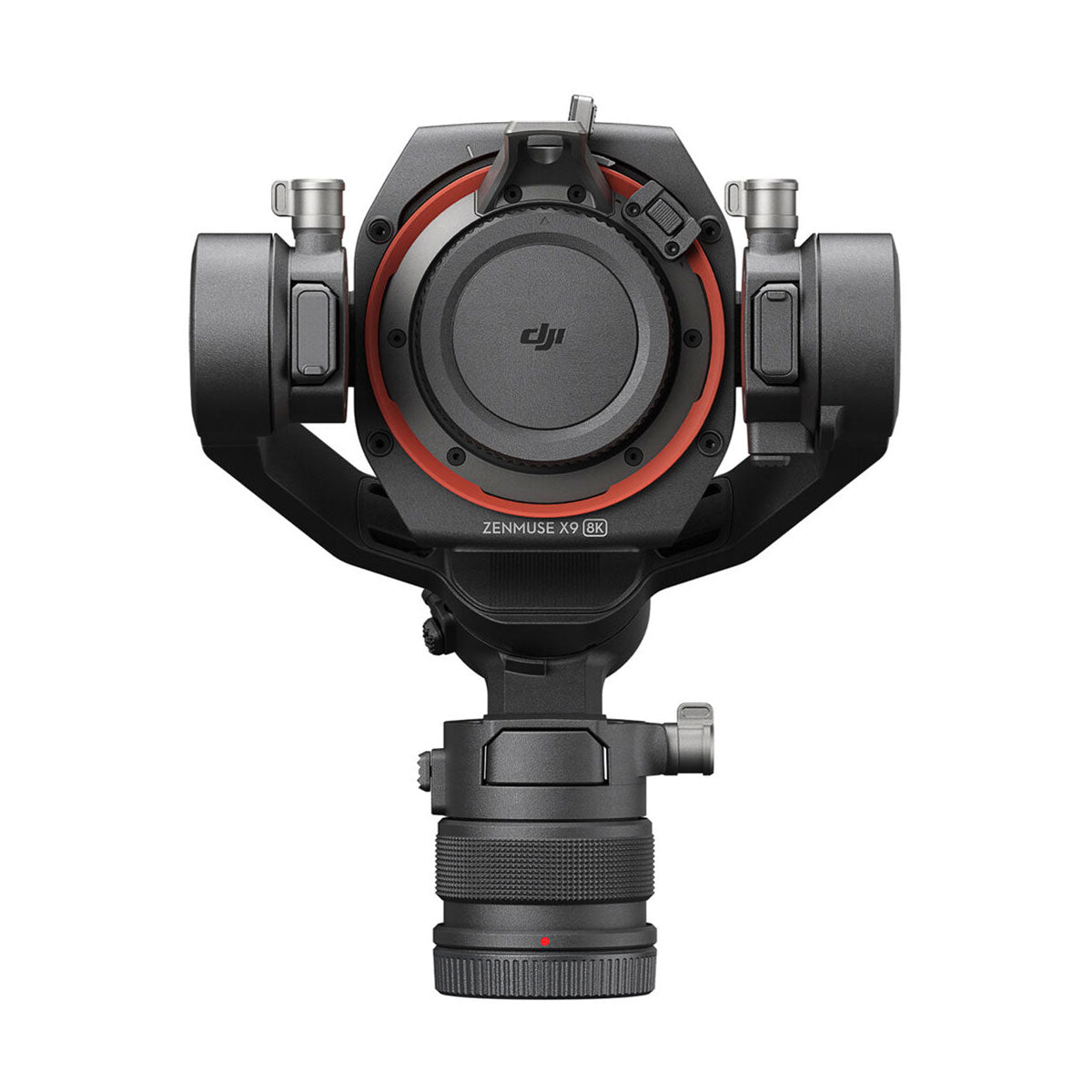

DJI Zenmuse X9-8K Gimbal Camera

Zenmuse X9 supports internal recording of Apple ProRes RAW, ProRes 4444 XQ, ProRes 422 HQ, ProRes 422 LT, and H.264 video, and up to 8K/60fps and 4K/120fps full-frame video recording. It also supports the ACES workflow.

Integrated and Modular: Both Realized in One Camera

The DJI Ronin 4D boasts a unique design, crafted with carbon fiber and aluminum magnesium. Its solid body seamlessly integrates imaging, stabilization, focusing systems, wireless transmission, and control. This eliminates time-consuming setups, enabling quicker shooting. Enjoy compact convenience and explore expansive possibilities with modular accessories.

Cinematic Imaging System: Designed for Pros

Processing Power

The Ronin 4D features the Zenmuse X9, DJI’s flagship full-frame camera, and the latest image processing system, CineCore 3.0. This system utilizes DJI’s proprietary chip, delivering high-performance computing power for internal recording of Apple ProRes RAW, ProRes 422 HQ, and H.264 video. With support for up to 8K/75fps and 4K/120fps video recording, it provides versatile options for professional-level creation.

Resolution

DCI 8K (8192×4320)/60fps video captures every detail, offering unprecedented creative options for post-production in 4K.

High ISO

Zenmuse X9 supports dual native ISO (X9-8K: 800/4000; X9-6K: 800/5000), recording images with exquisite detail and minimal noise in low-light conditions.

Dynamic Range

With 14+ stops of dynamic range, Zenmuse X9 captures natural transitions in complex lighting conditions, allowing easy capture of traditionally difficult scenes.

Color Science

The DJI Cinema Color System (DCCS) and CineCore 3.0's computing power give Zenmuse X9 a cinematic look, retaining authentic and accurate colors. It supports the industry-standard ACES workflow for compatibility with other cinema cameras.

Built-In 9-Stop ND Filters

X9 features 9-stop built-in ND filters (ND 2 to ND 512), quickly switchable with an internal motorized system, designed to match Ronin 4D's color science.

DL Lenses

X9’s DL mount supports three compact full-frame prime lenses, each lightweight and made of monocoque carbon fiber. Additional DJI lenses will be available in the future.

Interchangeable Mounts

X9 supports interchangeable lens mounts, including DJI’s proprietary DL mount and third-party mounts like Leica M. It provides flexible lens options, supporting ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic lenses.

Wireless Control

Whether using manual or autofocus lenses, dedicated modules mounted to X9 achieve wireless lens control and autofocus.

4-Axis Stabilization System: Steady in Every Way

DJI Ronin 4D adds a Z-axis to the traditional 3-axis gimbal, effectively reducing vertical camera shake and providing stabilization performance comparable to a dolly. The four axes, along with sensors and advanced algorithms, elevate stabilization to a new level, making complex camera movements easily attainable.

Integrated Gimbal Camera

Ronin 4D integrates imaging and stabilization systems, with only the sensor and necessary optical components in the gimbal camera. Dual symmetric motors on the tilt axis, along with additional stiffness buffers on the pan and roll axes, ensure stability and eliminate the need for tedious manual balancing. The highly integrated body offers superior stabilizing and tracking performance, even in Sport mode.

ActiveTrack Pro

DJI’s ActiveTrack Pro combines computer vision, deep learning technology, and CineCore 3.0's computing power for cinema-standard tracking shots, even in a single take. Track subjects from longer distances with continuous autofocus adjustment.

LiDAR Waveform

Ronin 4D simplifies manual focusing with visualized focus assistance technology, displaying ranging points on monitors for quick focus adjustments. The innovative LiDAR Waveform provides precise focus points, even for operators with minimal experience.

LiDAR Range Measurement

The LiDAR Range Finder offers fast and accurate focusing with up to 43,200 ranging points within a 10-meter detection range. Compared to phase detection autofocus, Ronin 4D’s LiDAR Focusing System excels in low-light environments, ensuring exceptional focusing capabilities.

Autofocus

With the LiDAR Focusing System, Ronin 4D maintains focus even with severe motion blur. Autofocus is available on manual lenses, and continuous autofocusing can be enabled with ActiveTrack Pro for convenient solo operation.

Automated Manual Focus

Automated Manual Focus (AMF) mode combines the accuracy of manual focus with the convenience of autofocus. The focus wheel synchronizes with focus point changes, and cinematographers can take manual control at any time. The dynamic damping with electromagnetic technology provides a physical sense of focus changes, offering an intuitive and modern focusing experience.

Wireless Transmission & Control System – Versatile Beyond Imagination

Ronin 4D utilizes DJI O3 Pro Video Transmission technology, offering a 20,000-foot transmission range, supporting 2.4GHz, 5.8GHz, DFS frequency band, and AES 256-bit encryption for enhanced security. The streamlined wireless transmission system, powered by DJI’s proprietary chip, ensures ultra-low transmission latency.
