LiDAR Assistance

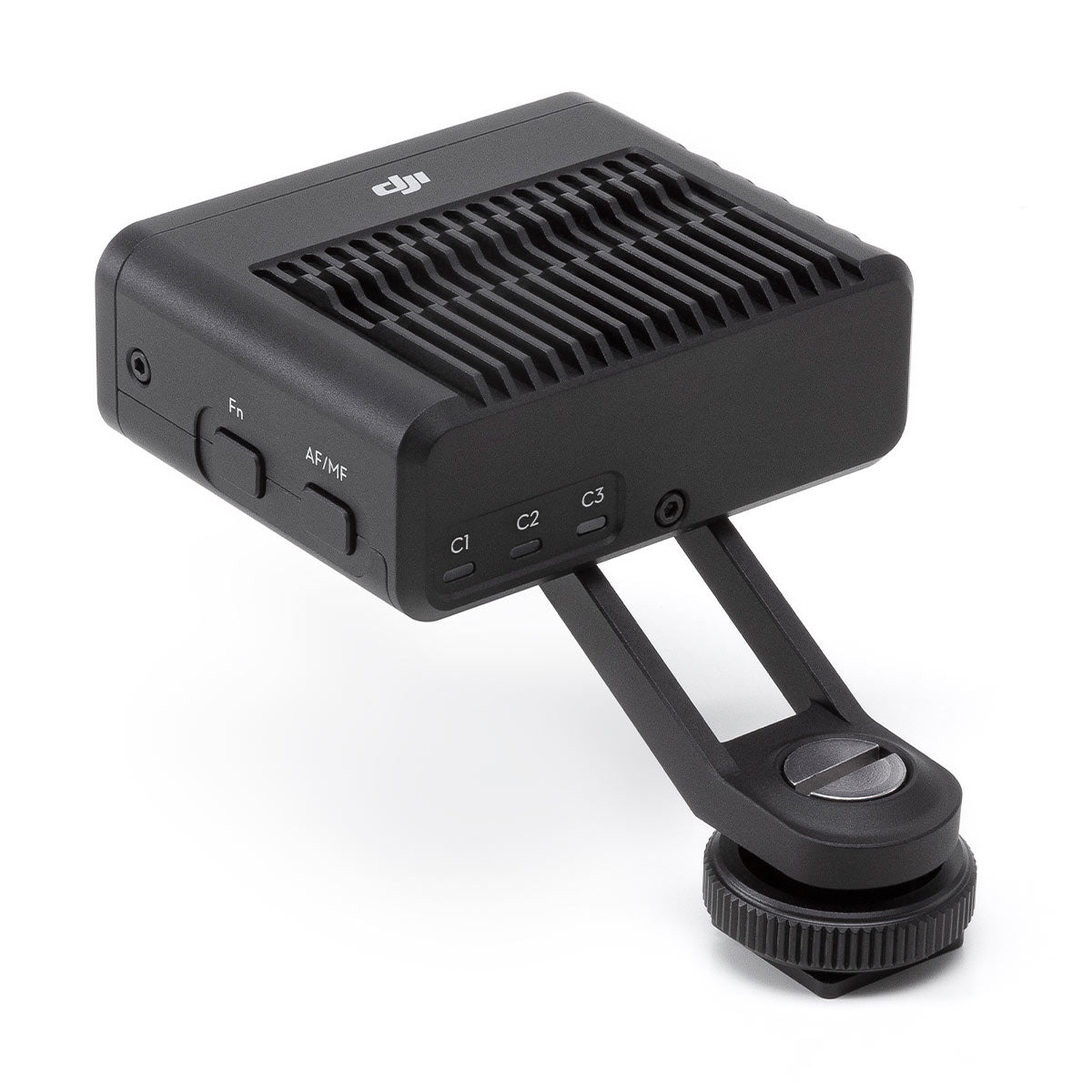

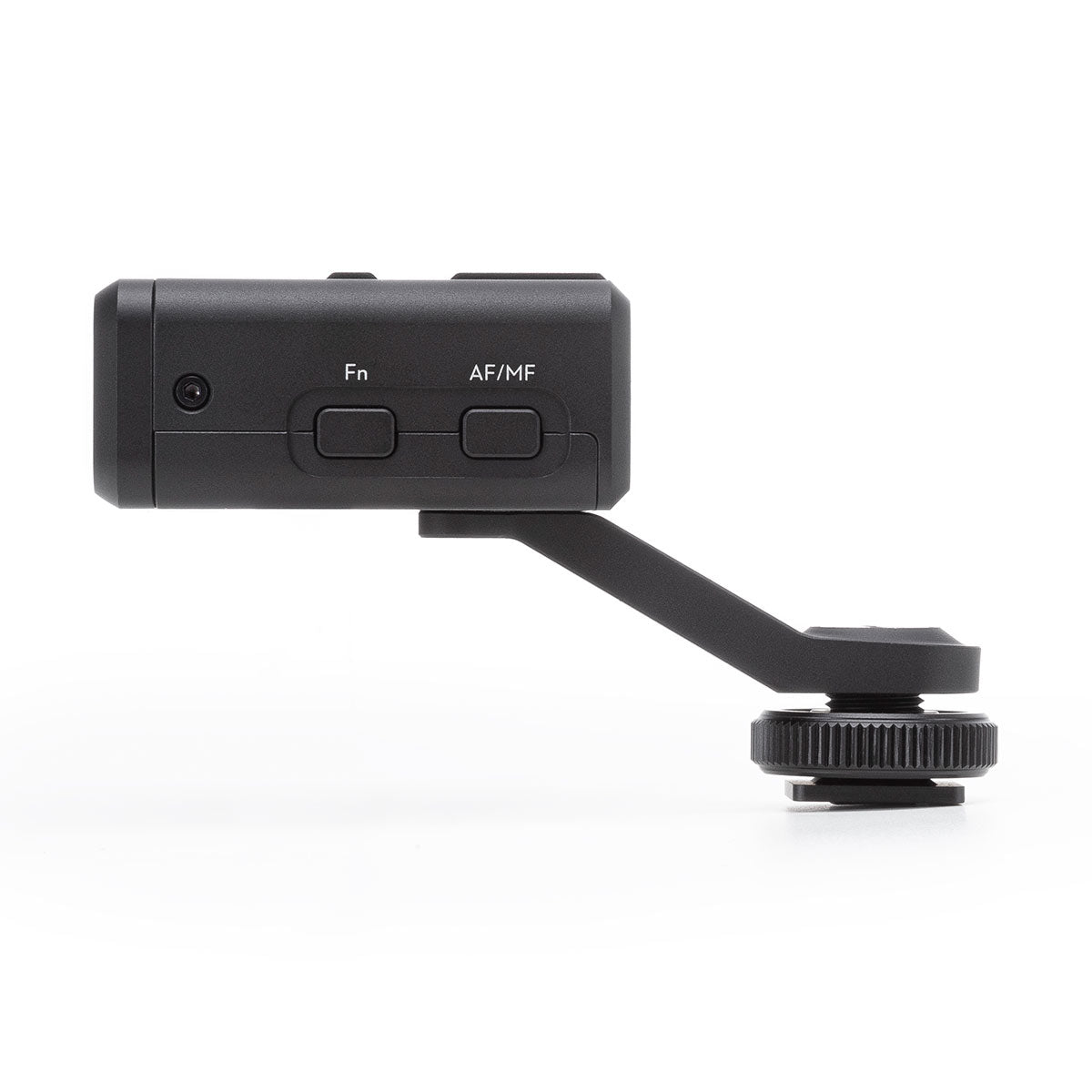

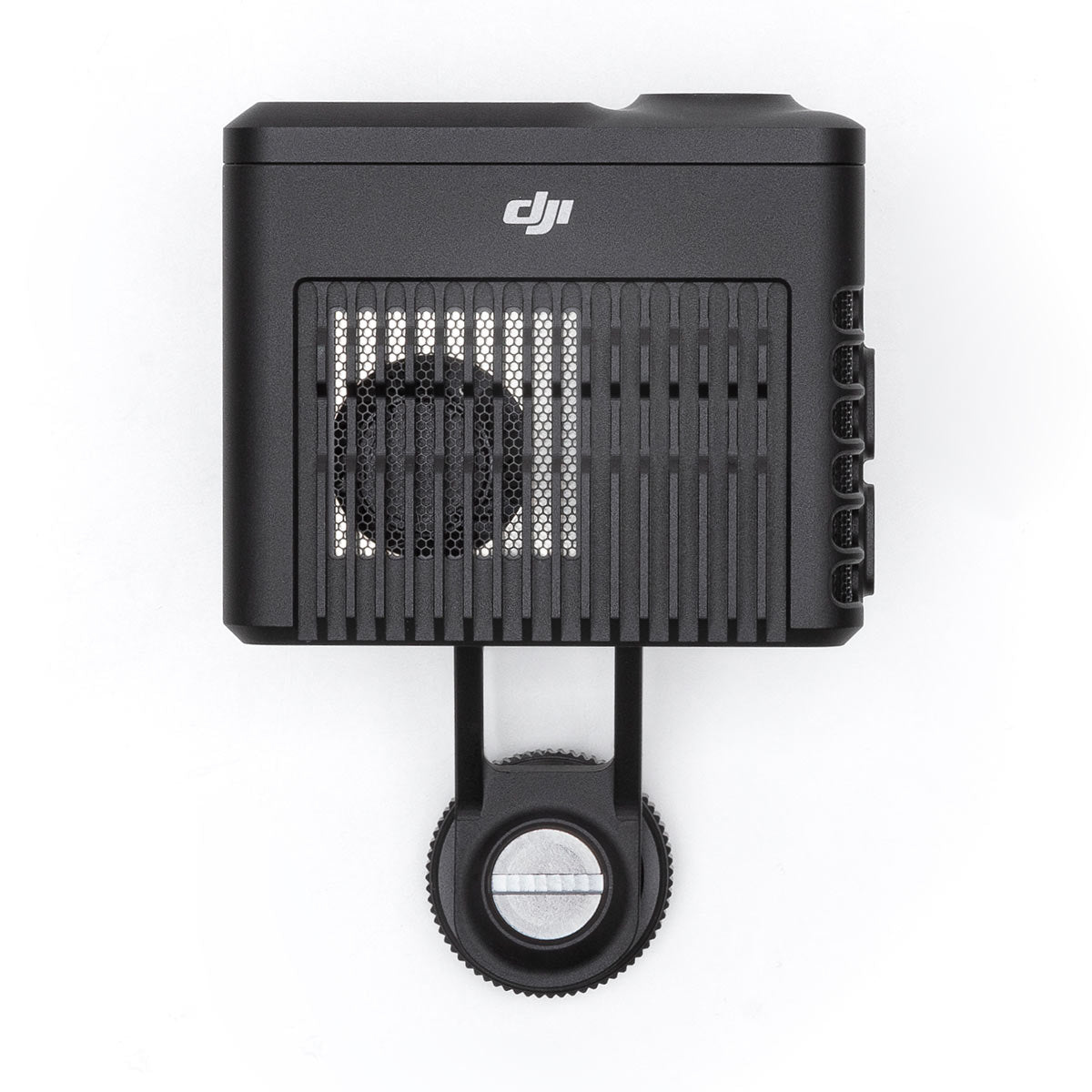

To make focusing easier, Ronin 4D’s LiDAR focusing technology is applied to RS 3 Pro. The new LiDAR Range Finder (RS) can project 43,200 ranging points within a 14-meter distance.

It also features a built-in camera with an equivalent focal length of 30 mm and a wide FOV of 70°, catering to the focusing needs of most scenarios.

Compared with conventional focusing technology, the LiDAR focusing system does not need to rely on the surface texture of the subject. This is especially useful in low-light environments or complicated scenarios with multiple subjects and results in exceptionally stable focus.

It supports both Wide Mode and Spot Mode. In Wide Mode, the range finder automatically detects the subject and follows focus. In Spot Mode, users can manually frame or tap the subject to focus.

Enables Cinematic Autofocus

The pairing of the LiDAR Range Finder with the new Focus Motor also makes cinematic autofocus on manual lenses possible. Press the M button on the gimbal once to quickly switch between manual focus and autofocus to meet your needs for both modes effortlessly.

After the calibration of manual lenses, several lens calibration profiles can be stored in the focus motor, so there is no need to re-calibrate before ensuing uses. Certain cinema lenses can even directly connect to the focus motor for autofocus with no need for calibration.

Users can also directly connect the LiDAR Range Finder and focus motor to the camera and operate independently from the gimbal, enabling autofocus on manual lenses as well with an external battery.¹

ActiveTrack Pro

Tracking on the Ronin series has never been more accurate or responsive.

The next-generation ActiveTrack Pro can directly read images from the camera built into the LiDAR Range Finder, with no need for the Ronin Image Transmitter (previously known as the Ronin RavenEye Image Transmitter). The LiDAR Range Finder also carries a self-developed chip identical to the one used by Ronin 4D, which boosts the computing power of ActiveTrack Pro by more than 60 times compared to ActiveTrack 3.0 on the Ronin Image Transmitter.

When using ActiveTrack Pro, you can directly monitor or frame the subject on the RS 3 Pro’s OLED touchscreen. The live feed latency is reduced to just 40 ms, 60% lower than that of the Ronin Image Transmitter, allowing for swift tracking, even when the subject is moving fast. With a neural network accelerator, it can identify and track targets, even when they are numerous and at a distance.¹

[1] Additional accessories required, sold separately
